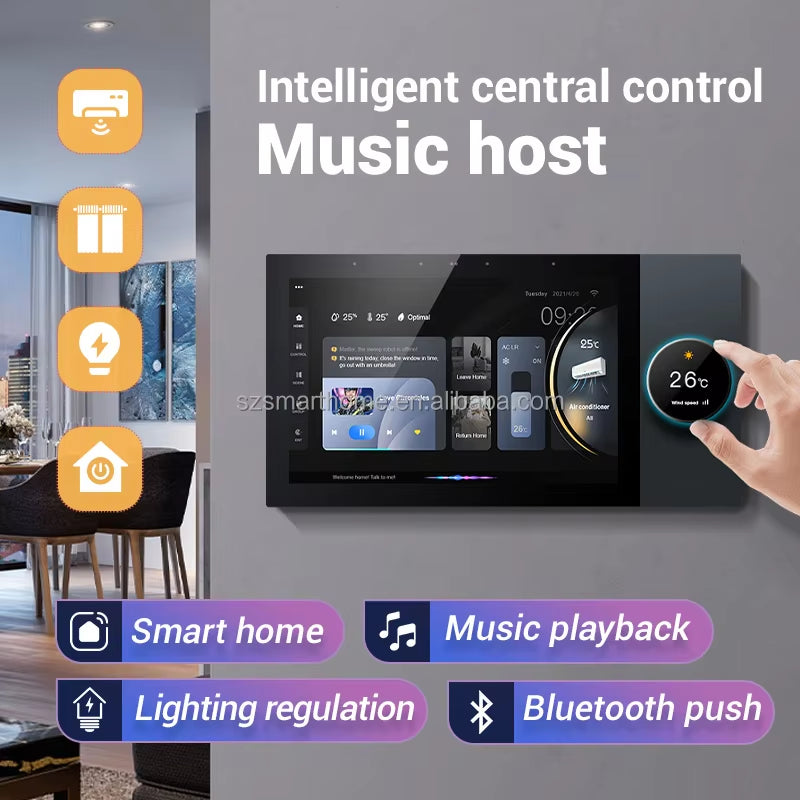

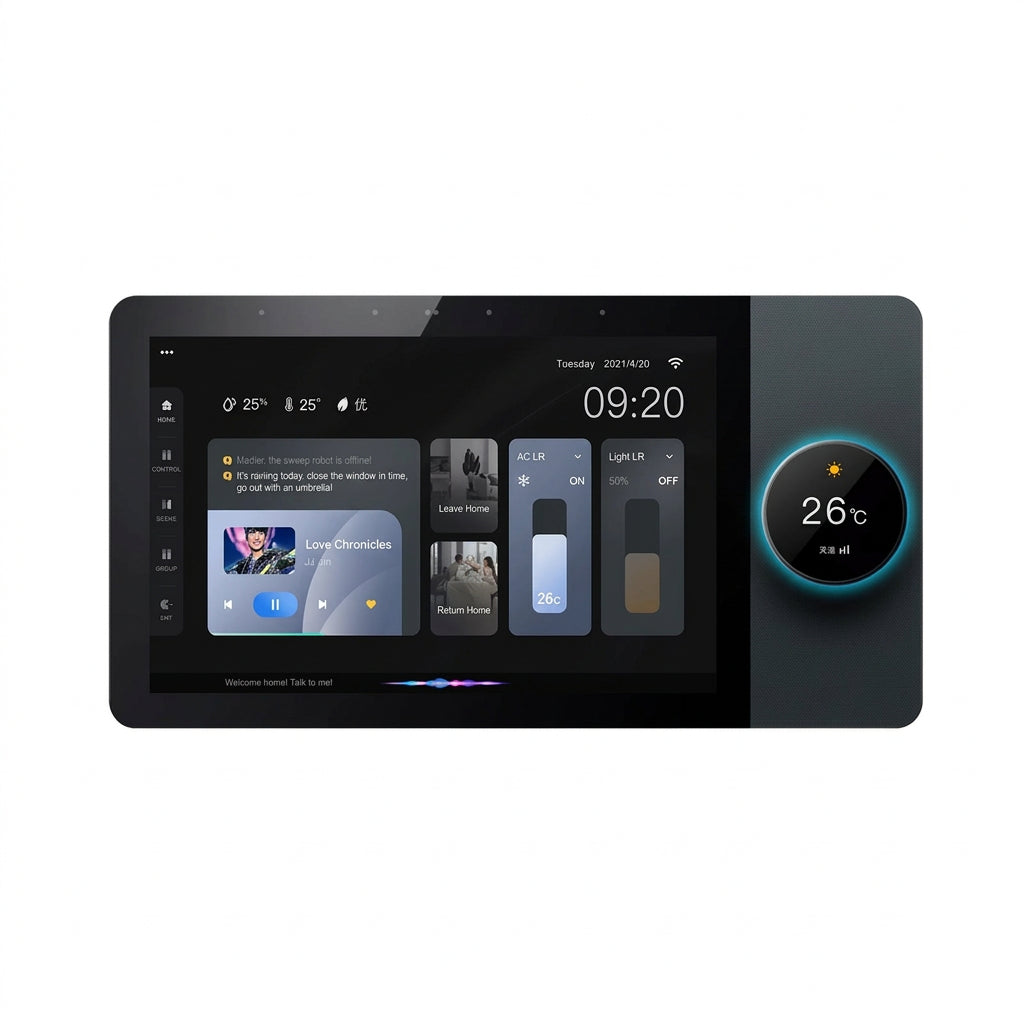

7-Inch Smart Home Control Panel with Bluetooth Music, Touchscreen, and App Control

The 7-Inch Smart Home Control Panel combines touchscreen controls, app connectivity, Bluetooth music playback, and smart home automation functions in one device. It features an Android operating system, a capacitive touchscreen, audio inputs and outputs, and timed on/off controls. The panel supports compatible smart home devices and offers a compact design for wall installation.

Specifications

• Product Type: Smart Switch

• Display Size: 7 inches

• Display Resolution: 1024 × 600

• Secondary Display: 1.28-inch round screen, 240 × 240 resolution

• Operating System: Android 8.1

• Memory: 2 GB RAM

• Storage: 8 GB ROM

• Touchscreen Type: Capacitive

• Power Supply: AC 90–240 V

• Network Connectivity: Wi-Fi 2.4 GHz and Ethernet

• Bluetooth: Supports connection to mobile phones

• Audio Connections: One audio input and one audio output group

• RS485: One output set

• Speaker Output Power: 4 × 10–25 W digital power amplifier, with analog audio output

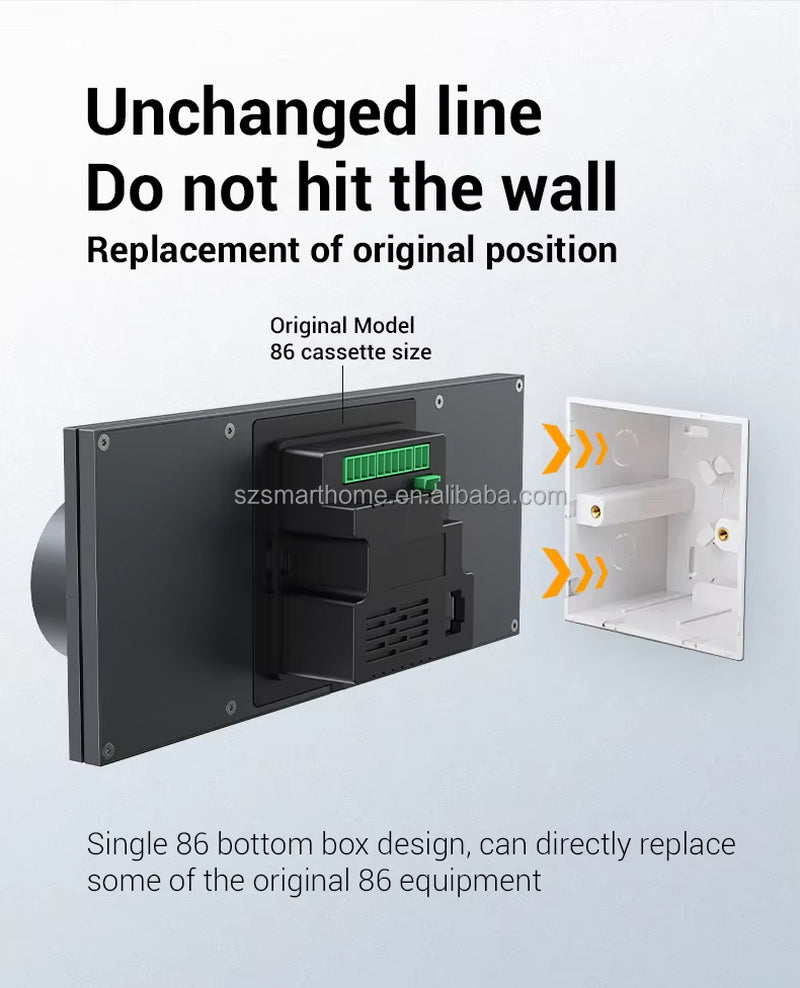

• Installation Method: British standard 86-type wall box

• Dimensions: 235 × 111.6 × 11.5 mm

• Weight: 0.65 kg

• Color: Black

Features

• Touchscreen Control: Manage compatible smart home functions through the touchscreen interface.

• App Remote Control: Supports compatible app-based control.

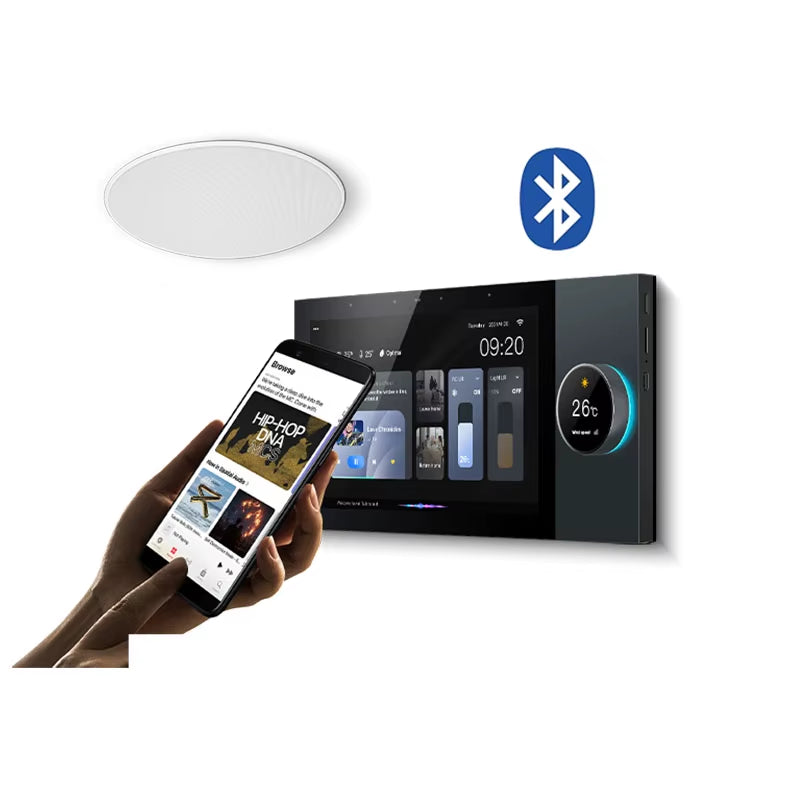

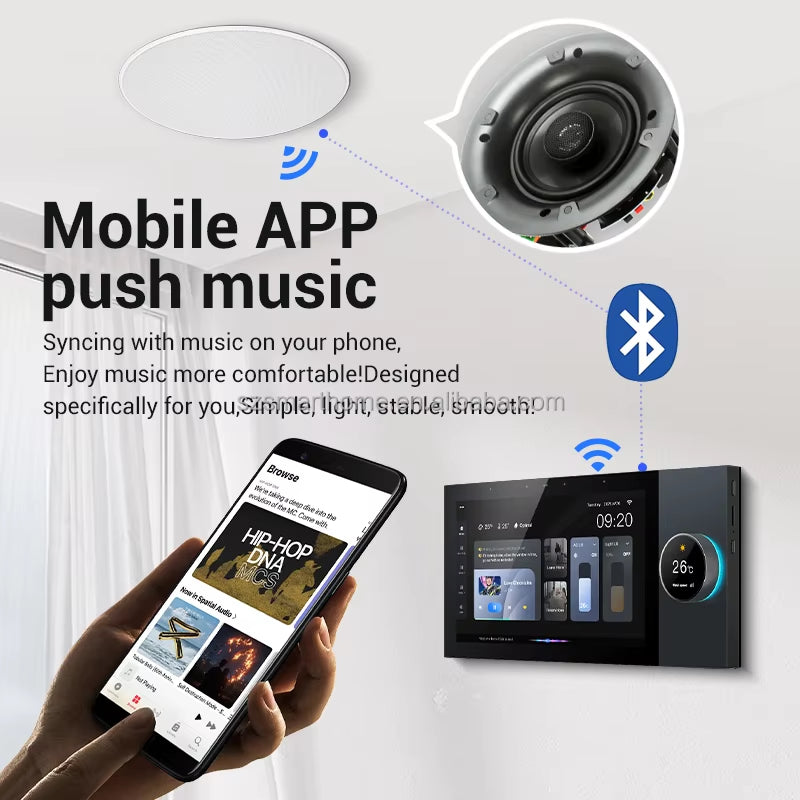

• Bluetooth Music: Play music from a connected mobile phone.

• Scheduled Playback: Supports scheduled music playback.

• Timed Switching: Configure scheduled on/off functions.

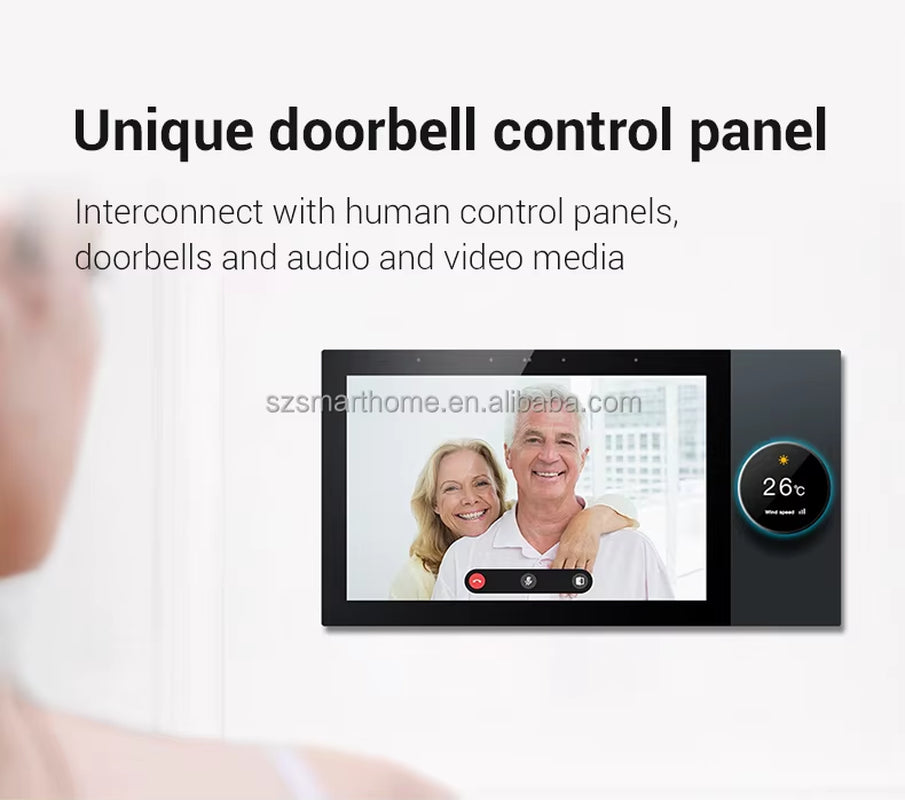

• Video Doorbell Integration: Supports video calls with compatible doorbell equipment.

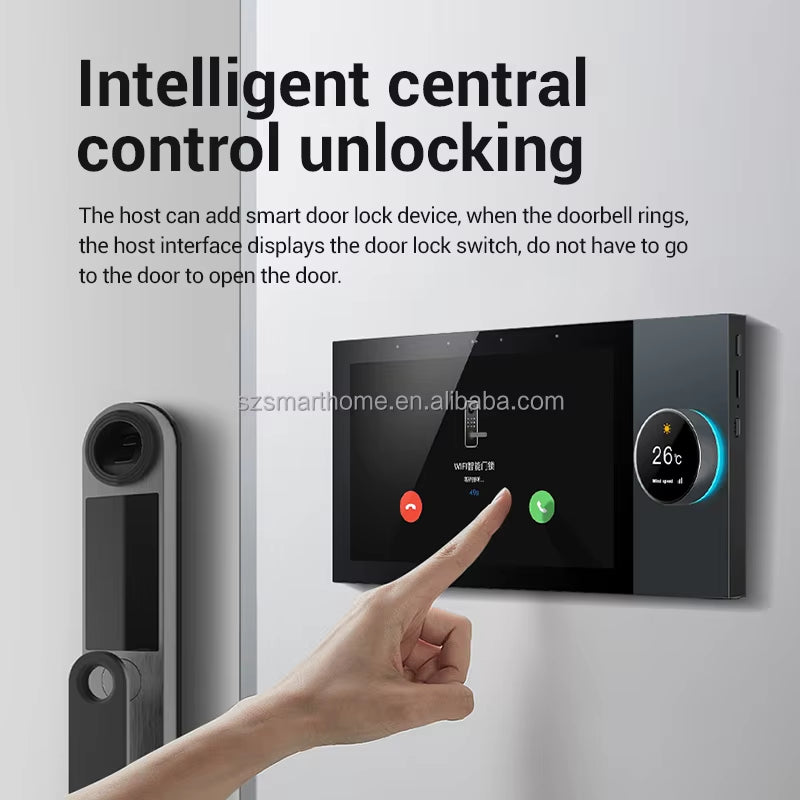

• Door Lock Integration: Supports compatible fingerprint locks and screen-based door-opening controls.

• Smart Home Control: Designed to manage compatible smart home devices and scene settings.

• Flexible Power Connection: The dual wall-box design supports powering both boxes or selecting one, according to the installation configuration.
